Double Eagle roof top rework

[seachicken]

Hey guys I need to rework the roof of my Double Eagle. My plotter doesn't keep correct heading, it's always 10-15 degrees to the left or right. I've tried calibrating it and it doesn't help. As you can see in the picture the puck certainly is not 24" from the radar... Step one is going to be to remove the radar for now to see if that helps. And yes I know my anchor light is probably too low.

Longer term though I want rod holders across the back and figure I might as well ditch the factory roof bars and build something to mount the radar, maybe a full hoop around the top. Just wondering if anyone has suggestions on layout and where is best for the radar, maybe even a mount out the front. Also any pictures would be great. I have a bender with a 1-3/4" die and a tig welder so will do it myself, just not with fancy anodized tubing. I might be convinced to buy a smaller die...



[chille51]

Could be your VHF antennas too? What about moving your GPS puck instead? I believe there is no rule it needs to be on the roof, just have a clear view of the sky - could you put it out on your bow?



[brutus]

Move the puck, or buy a unit with internal antenna ??



[seachicken]

Could be your VHF antennas too? What about moving your GPS puck instead? I believe there is no rule it needs to be on the roof, just have a clear view of the sky - could you put it out on your bow?

Yes you are correct from what I've read. I'd rather keep it on the roof at this point. I think it's far enough from the antennas but haven't measured...



[seachicken]

Move the puck, or buy a unit with internal antenna ??

Plotter is an Elite FS 9, I think it has an internal antenna. Is the puck overkill? I do have an autopilot, not sure if it's required for that?



[brutus]

Plotter is an Elite FS 9, I think it has an internal antenna. Is the puck overkill? I do have an autopilot, not sure if it's required for that?

Probably, I ditch my puck on my Raymarine but I don’t have auto pilot, not sure if you need it



[zurk]

get a dgps heading sensor if you want to get rid of the puck.

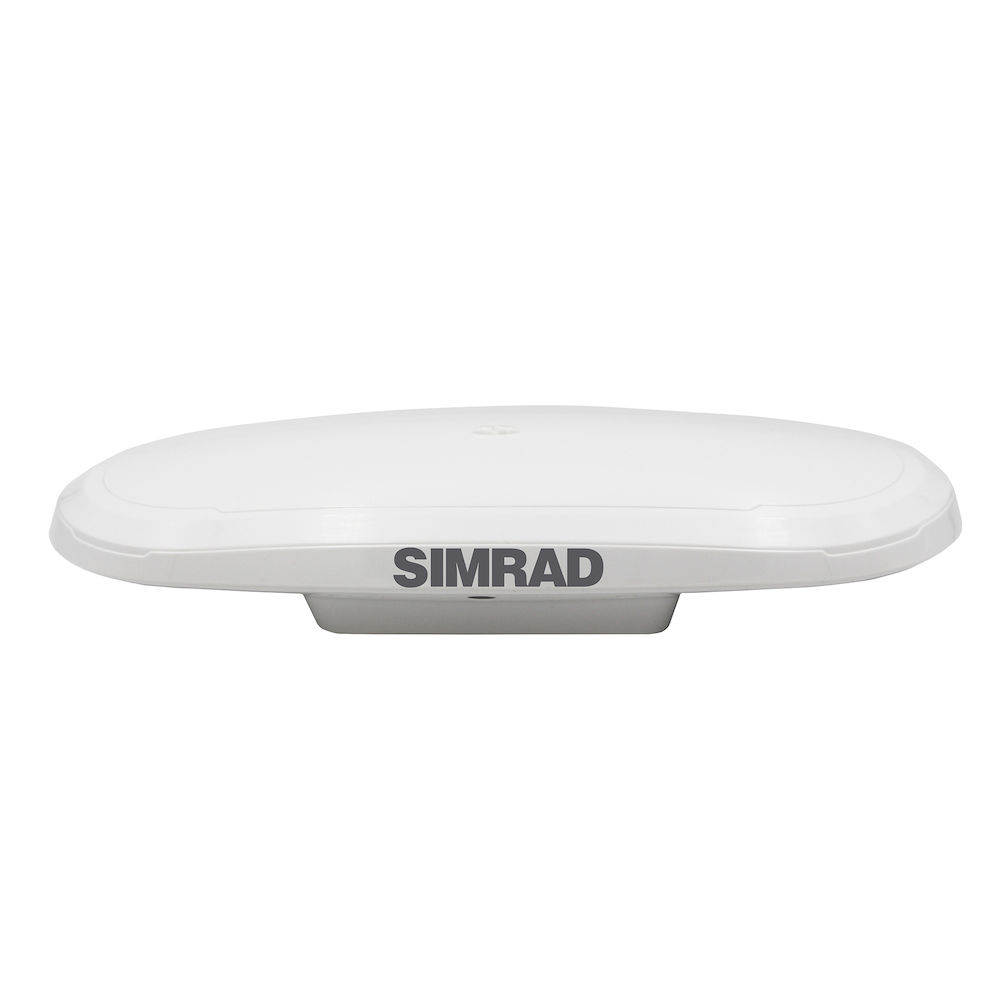

HS75 GNSS Compass

The HS75 offers a powerful combination of simple installation, small form factor, and high performance. The compass - measuring only 35 cm in length - mounts easily to a flat surface or pole.

www.simrad-yachting.com



[seachicken]

get a dgps heading sensor if you want to get rid of the puck.

HS75 GNSS Compass

The HS75 offers a powerful combination of simple installation, small form factor, and high performance. The compass - measuring only 35 cm in length - mounts easily to a flat surface or pole.

www.simrad-yachting.com

Thanks, just not sure about if I want to spend $2600 on that one though! Will probably keep the puck, just need to figure out if the issue is it's proximity to



[seachicken]

Probably, I ditch my puck on my Raymarine but I don’t have auto pilot, not sure if you need it

I guess I can just unplug it from the NMEA and see what it does.



[BigBird007]

My setup… I would have just mounted the point-1 puck on my dash but the boat already had holes in the roof so I utilized them.

I believe you need the AP point-1 antenna if you have Autopilot.



[seachicken]

My setup… I would have just mounted the point-1 puck on my dash but the boat already had holes in the roof so I utilized them.

I believe you need the AP point-1 antenna if you have Autopilot.

Thanks for the pictures and feedback, I have been considering a double bar arch like yours.
